ARI2044B
Li-ion 18V 3/8" Angle Impact Wrench with Digital Clutch

Features

● 6 impacts in 1: Patent-pending electronic clutch with 6 torque settings for right torque operation.

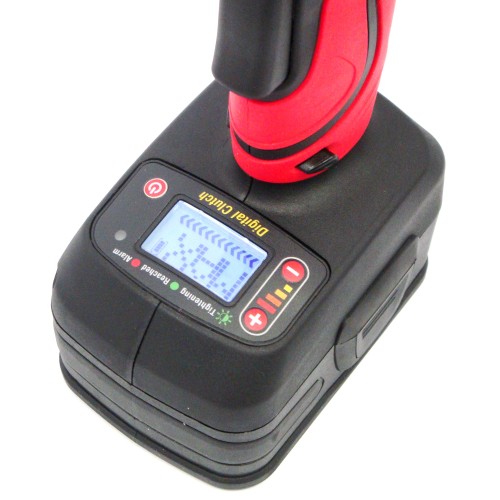

● LCD display shows torque stage, battery indication and torque stage memory functions.
● Angled compact head allows to safely use this tool in narrow spaces.
● 95 ft-lbs (128 Nm) for max. reverse torque and 60 ft-lbs (80 Nm) for tightening torque applications.
● 0-2,000 rpm / 0-3,000 ipm for faster applications.
● Battery indicator shows battery capacity.
● Durable aluminum gearbox housing.
● Variable speed with reversible control.
● Anti-slip soft grip provides comfort and good protection during work.

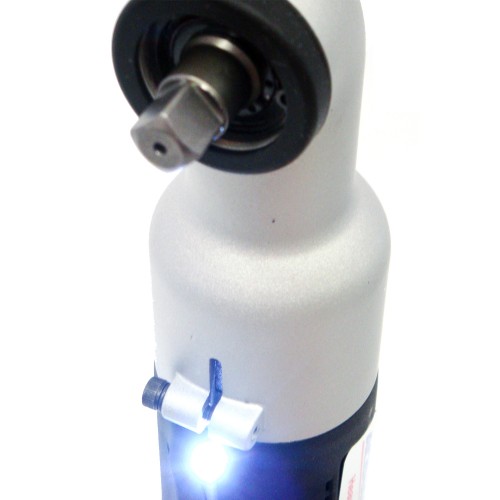

● Built-in LED light for convenient illumination during work.

ARI2044B - 6 Digital torque limiting settings
  Setting 1 Setting 2 Setting 3 Setting 4 Setting 5 Setting 6
Ft-lbs 14.8 22.1 33.2 40.6 51.7 60.0
Nm 20 30 45 55 70 80
- Accuracy can vary due to bolt size, grade, and various other factors.

ACDelco 18Volt Impact Wrenches video by ACDelco
ACDelco 2044B Li-ion 18V Impact Wrench by ToolsInAction
 Flyer pdf    Need higher resoultion file?
 ETC Tools Flyer

Specifications
Model Number ARI2044B
Voltage 18 Vdc
Drive 3/8" Square
Reverse Torque 95 ft-lbs (128 Nm)
Tightening Torque 60 ft-lbs (80 Nm)
No Load Speed 0-2,000 RPM
Impact per Minute 0-3,000 IPM
Tool Weight 3.59 lbs (1.63 kg)

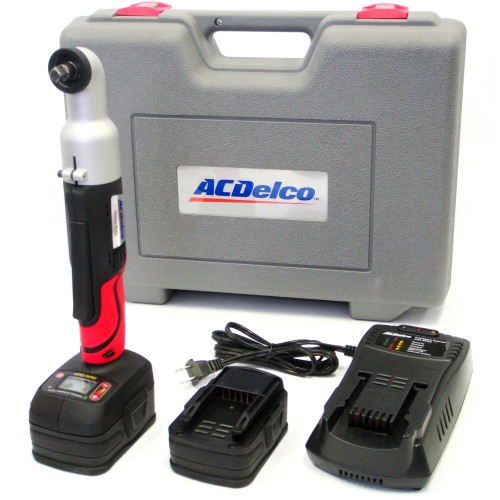

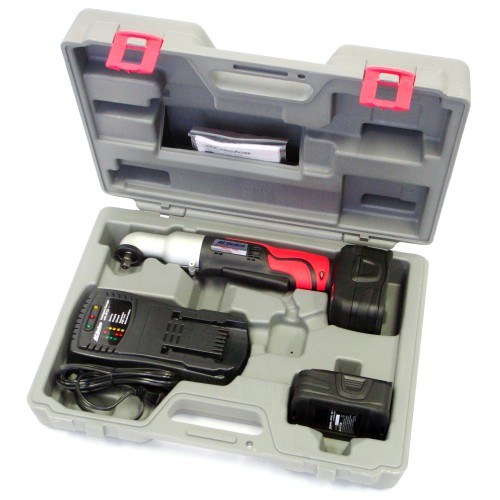

Includes
AB2045L Li-ion 18V 2.0 Ah Battery Pack x 2
ADC20US37-30 Intelligent Charger with AFCS x 1
Carrying case x 1

Resources

Accessories (Optional)
