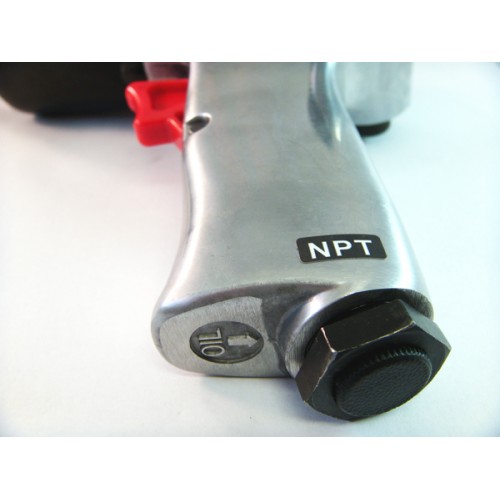

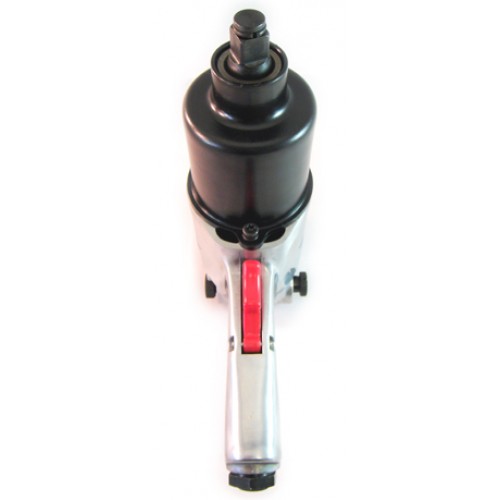

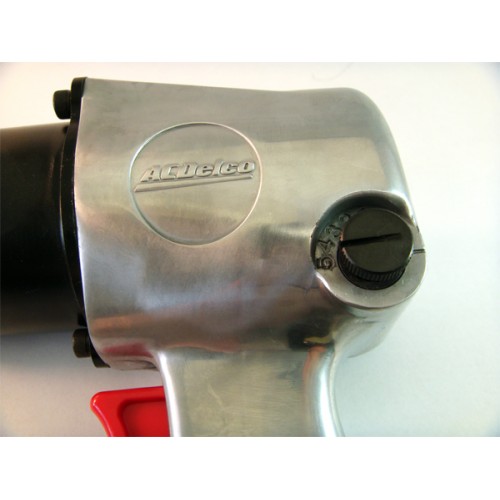

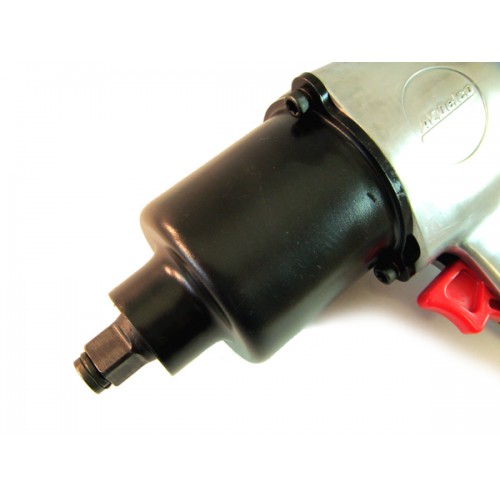

ANI403 1/2” Impact Wrench
ANI403 1/2” Impact Wrench ANI403 1/2” Impact Wrench ANI403 1/2” Impact Wrench ANI403 1/2” Impact Wrench ANI403 1/2” Impact Wrench ANI403 1/2” Impact Wrench
ANI403
1/2” Impact Wrench

Features
● Powerful and durable impact mechanism TWIN HAMMER.
● Durable aluminum alloy housing.
● Forward: 6 speeds; Reverse: 6 speeds.
● Front exhaust design.

 Need higher resoultion file?

Specifications
Model Number ANI403
Square Drive 1/2” Square
Max. Torque 650 ft-lbs (880 Nm)
Working Torque Range 50~450 ft-lbs (67~609 Nm)
Standard Bolt Size 5/8” (M16)
Free Speed 8,000 RPM (/min)
Air Consumption 5.3 CFM (150.0 l/min)
Overall Length 7-1/8” (180 mm)
Air Inlet 1/4”
Air Pressure 90 PSI (6.2 Bar)
Air Hose 3/8” (10 mm)
Sound Pressure Level (LpA) 98.39 dB(A)
Sound Power Level (LwA) 109.38 dB(A)
Vibration Level 2.98 m/sec²
Net Weight 5.58 lbs (2.25 kg)

Includes
N/A


Accessories (Optional)
