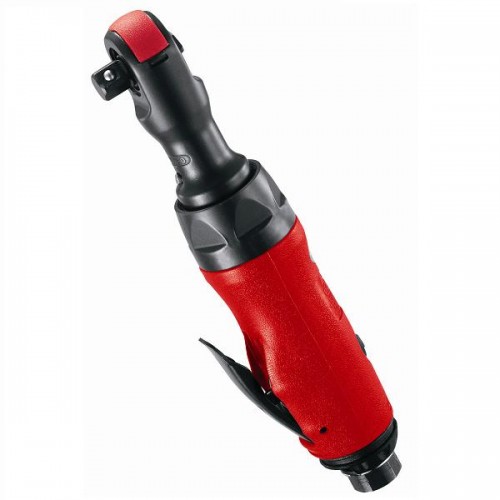

ANW301 3/8” Ratchet Wrench
ANW301 3/8” Ratchet Wrench ANW301 3/8” Ratchet Wrench ANW301 3/8” Ratchet Wrench ANW301 3/8” Ratchet Wrench
ANW301
3/8” Ratchet Wrench

Features
● Lightweight and ergonomic body.
● Dust-free sealed head design.
● Rear exhaust design.


   ACDelco Pneumatic Ratchet Technology  by ToolsInAction
Specifications
Model Number ANW301
Square Drive 3/8” Square
Max. Torque 40 ft-lbs (54 Nm)
Standard Bolt Size 5/16” (M8)
Free Speed 290 RPM (/min)
Air Consumption 3.5 CFM (99.0 l/min)
Overall Length 8-1/16” (205 mm)
Air Inlet 1/4”
Air Pressure 90 PSI (6.2 Bar)
Air Hose 3/8” (10 mm)
Sound Pressure Level (LpA) 90.13 dB(A)
Sound Power Level (LwA) 101.12 dB(A)
Vibration Level 2.18 m/sec²
Net Weight 1.45 lbs (0.66 kg)


Includes



Accessories (Optional)
