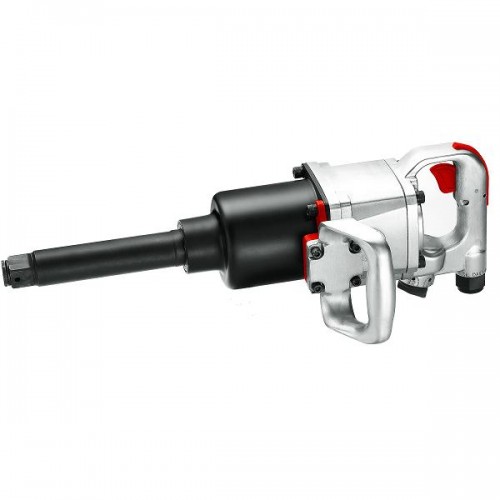

ANI811  1” Impact Wrench
ANI811  1” Impact Wrench ANI811  1” Impact Wrench ANI811  1” Impact Wrench ANI811  1” Impact Wrench
ANI811
1” Impact Wrench

Features
● Powerful and durable impact mechanism NEW TWIN HAMMER.
● Durable aluminum alloy housing.
● Forward: 3 speeds; Reverse: 3 speeds.
● Side exhaust design.

Specifications
Model Number ANI811
Square Drive 1” Square
Max. Torque 1,800 ft-lbs (2,439 Nm)
Working Torque Range 300~1400 ft-lbs (406~1,896 Nm)
Standard Bolt Size 1-27/64” (M36)
Free Speed 4,500 RPM (/min)
Air Consumption 12 CFM (340 l/min)
Overall Length 19-1/2” (495 mm)
Air Inlet 1/2”
Air Pressure 90 PSI (6.2 Bar)
Air Hose 3/4” (19 mm)
Sound Pressure Level (LpA) 101.14 dB(A)
Sound Power Level (LwA) 112.13 dB(A)
Vibration Level 8.69 m/sec²
Tool Weight 27.5 lbs (12.5 kg)
